SolarTronics | Double Gate Kit - Solar, 240 Volt, Low Voltage

$2,588.00 AUD

Sale Sold out

Shipping calculated at checkout.

Additional rural, regional, bulky or pallet delivery charges may apply and must be paid before dispatch.

Configuration Mains (240V) Kit Low Voltage kit Solar Kit

Complete your system Complete Your Gate System Add compatible accessories for safety, access and smart control. Complete Your Gate System

For swing gates up to 800kg per leaf. Available in Solar, Low Voltage or 240V Mains configurations.

The Solartronics Heavy Duty 24V DC Swing Gate Kit is a robust automatic gate solution engineered for residential, acreage and light rural properties requiring dependable performance across a range of power environments. Designed to handle swing gates up to 800 kg, it delivers smooth, controlled movement for large timber or steel gates on level ground or mild gradients.

Built around a 24V DC system with intelligent charging and battery backup, this kit can be configured for full off-grid solar operation, low voltage supply, or traditional 240V mains power. This flexibility allows you to select the most suitable power solution for your property while maintaining consistent performance, obstacle safety protection and extended-range remote control operation.

A heavy-duty locking system is available as an optional upgrade. The positive locking system uses a locking shaft and a locking bracket that cannot be pushed open, providing added security and stability in exposed or high-wind conditions.

SolarTronics gate systems are built to order, with a current turnaround time of approximately 7 business days.

Power Options

20W Solar Kit (with MPPT charging)
240V Mains Power Kit
Low Voltage Power Kit

Control & Operation

Adjustable automatic close delay
Manual Auto/Open hold switch
Obstacle detection safety stop
Extended-range remote controls

What's Included

Base Inclusions for all Kits:

2 × Solartronics Heavy Duty 24V DC swing drive units with cables
(Suitable for gates up to 800kg)
2 × Remote controls
(Extended range – more than double previous generation remotes)
Weatherproof IP66 control box
(Houses control circuit, batteries, regulators)
Automatic gate close with adjustable delay
Auto/Open switch (hold open or auto-close mode)
Obstacle safety detection system
Mounting hardware for timber gate posts
(Coach screws, wood screws, saddles, conduits, etc.)

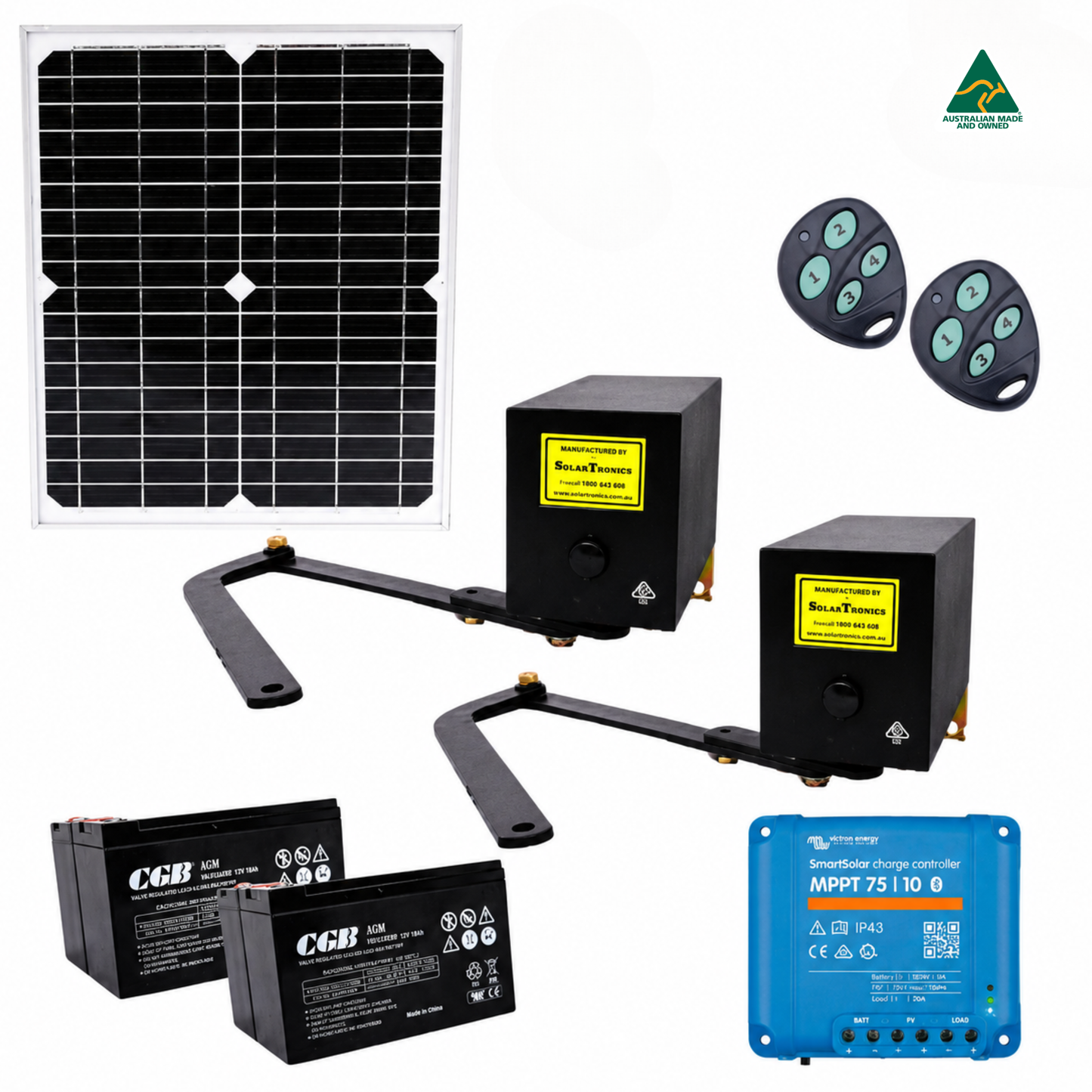

Solar Kit also includes:

1 × 20W solar panel with mounting bracket
1 × MPPT charge controller
(will charge the battery when it gets as low as 3 Volts)
2 × 12V batteries

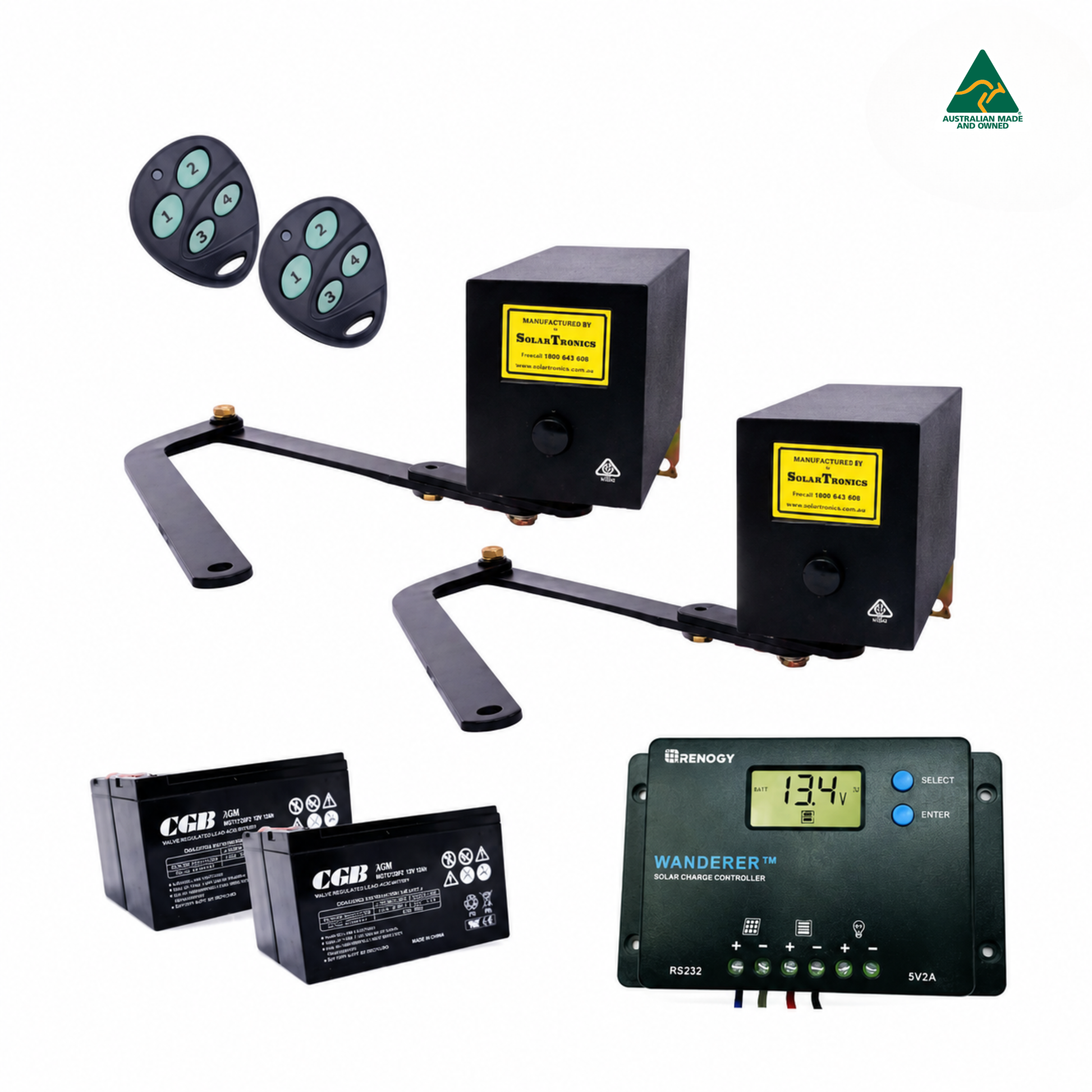

240V Kit also includes:

2 × 12V batteries
1 × Wanderer smart charging controller with display

Low Voltage Kit also includes:

2 × 12V batteries
Wanderer smart charging controller with display
1 × Low voltage power supply

Technical Specifications

Motor Voltage: 24V DC
Maximum Gate Weight: Up to 800kg per leaf
Control Box Rating: IP66 (weatherproof)
Battery Configuration: 2 × 12V
Charging System:

MPPT controller (Solar Kits)
Wanderer smart controller (240V & Low Voltage Kits)

Other Info

Technical support provided directly by OEM (Solartronics)
All kits can be customised to suit your specific gate and site requirements
Full range of spare parts available
OEM onsite technical support available from Solartronics, subject to location
Warranty:

2 Year Return-to-Factory warranty on PCB and Drive Unit
1 Year warranty on all other components

Prices are subject to change without notice

View full details

For Gates up to 800kg

Solar & Off-Grid Option Available

Dual Battery Backup

Rural & Residential Rated

.
