Merlin | Slide 600 Gate Opener MGSK600

$899.00 AUD

Sale Sold out

Shipping calculated at checkout.

Additional rural, regional, bulky or pallet delivery charges may apply and must be paid before dispatch.

Configuration Main Power Low Voltage Solar Kit

Complete your system Complete Your Gate System Add compatible accessories for safety, access and smart control. Complete Your Gate System

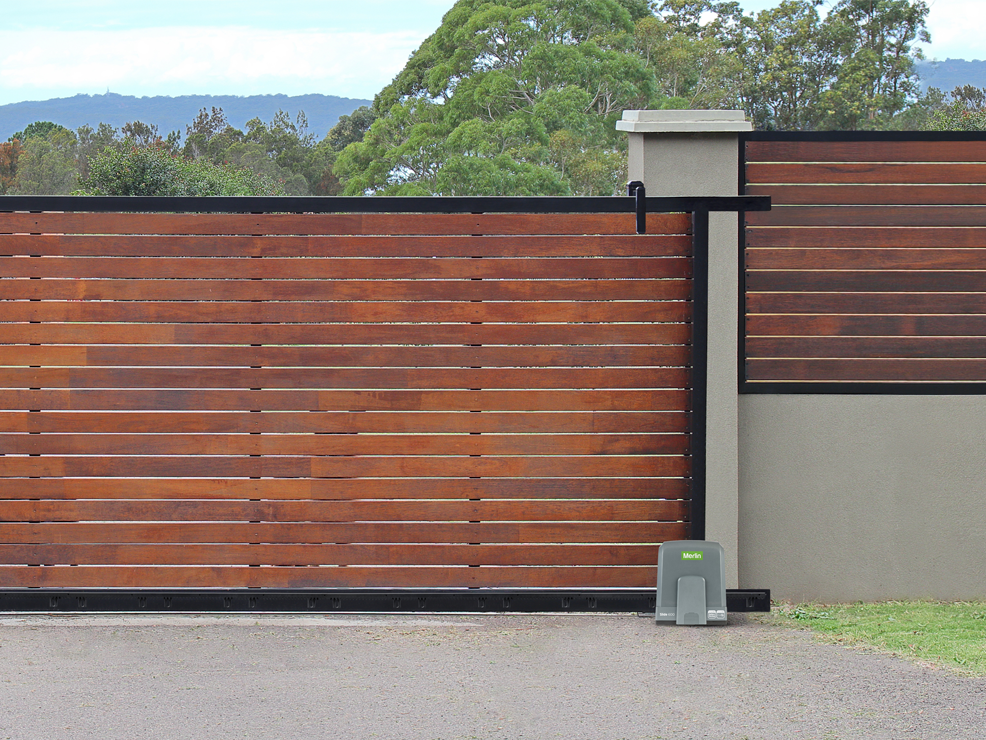

The Merlin Slide 600 Sliding Gate Opener is designed for residential and light commercial sliding gates up to 8 metres, delivering powerful, smooth, and reliable operation for heavier sliding gate applications.

Rated IP44, the Slide 600 is built to withstand everyday outdoor conditions while providing strong lifting performance for gates weighing up to 600 kg.

Power Options

Available in Mains Power, Low Voltage or with a Solar Power Kit
Battery backup compatible (sold separately)

Control & Operation

LCD Display for simple setup and diagnostics
myQ smart control compatible for remote access and monitoring
- Additional purchase of The Outdoor Protector System and myQ Gateway is required
Adjustable opening & closing speeds
Manual disengagement mechanism allows the gate to be opened and closed manually when required

What's Included

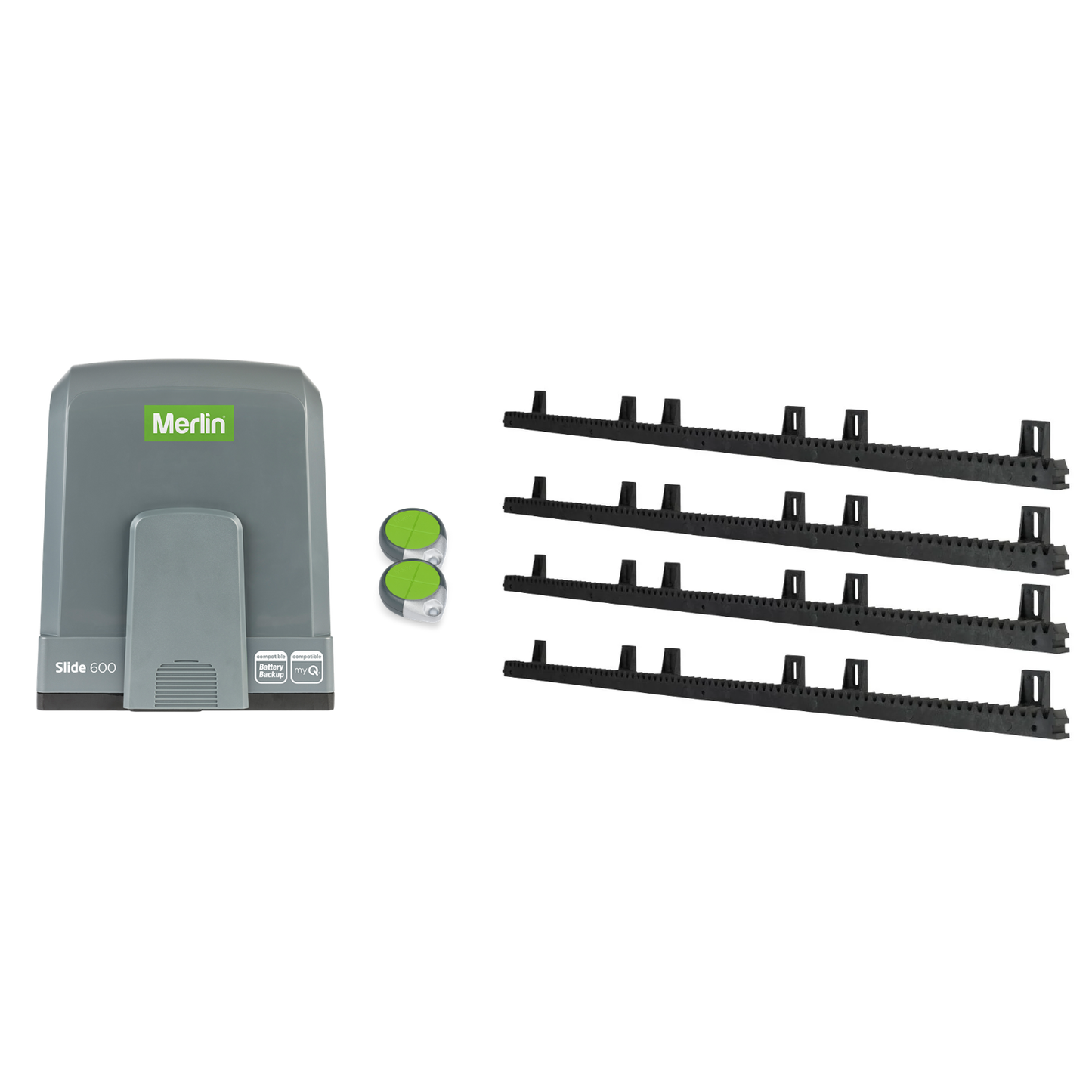

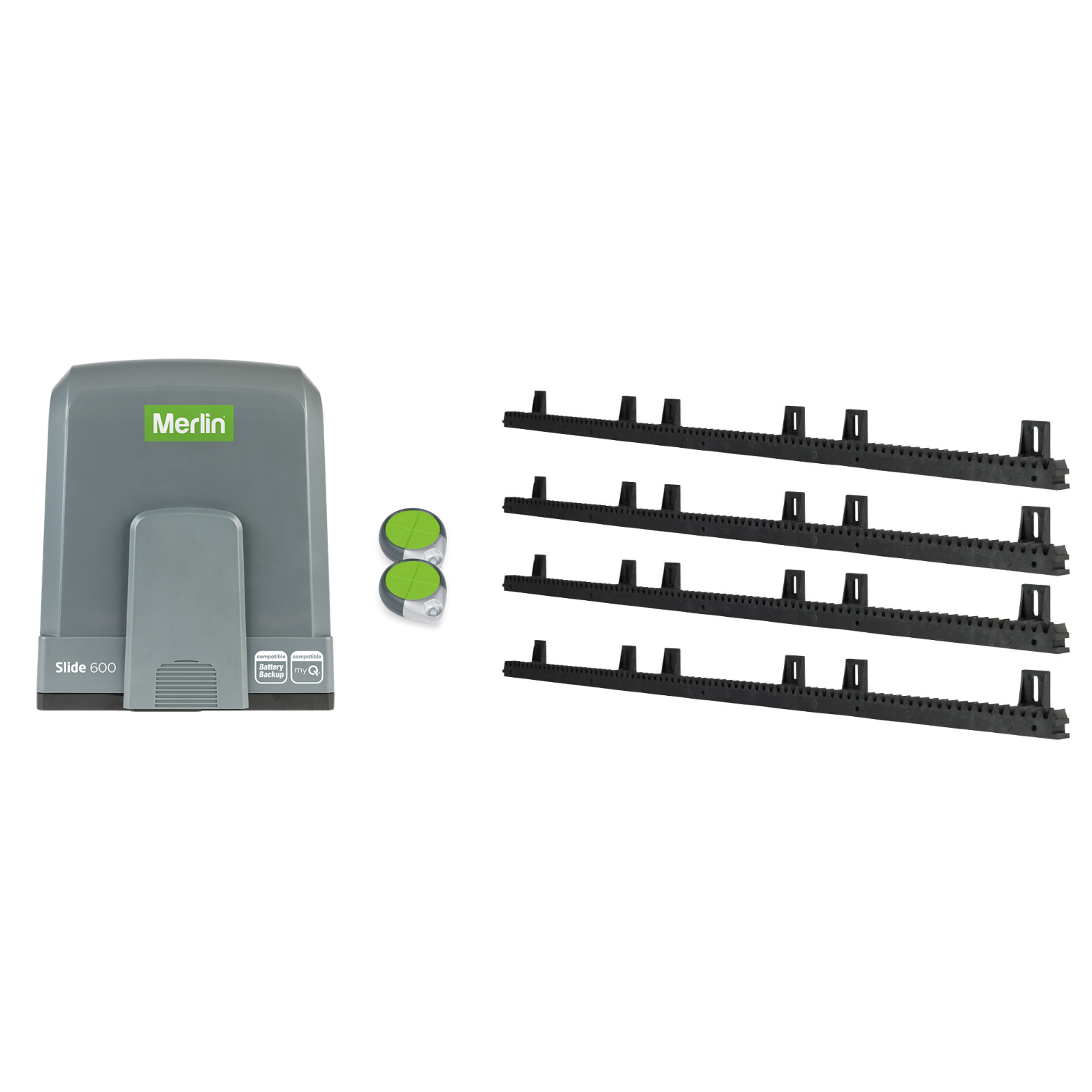

Main Power Configuration

1 × Merlin Slide 600 Sliding Gate Opener (MGSK600)
2 × E970M Premium Keyring Remotes
4 × 1 m MGS-RACK Sliding Gate Racking

Additional rack lengths can be purchased separately as required.

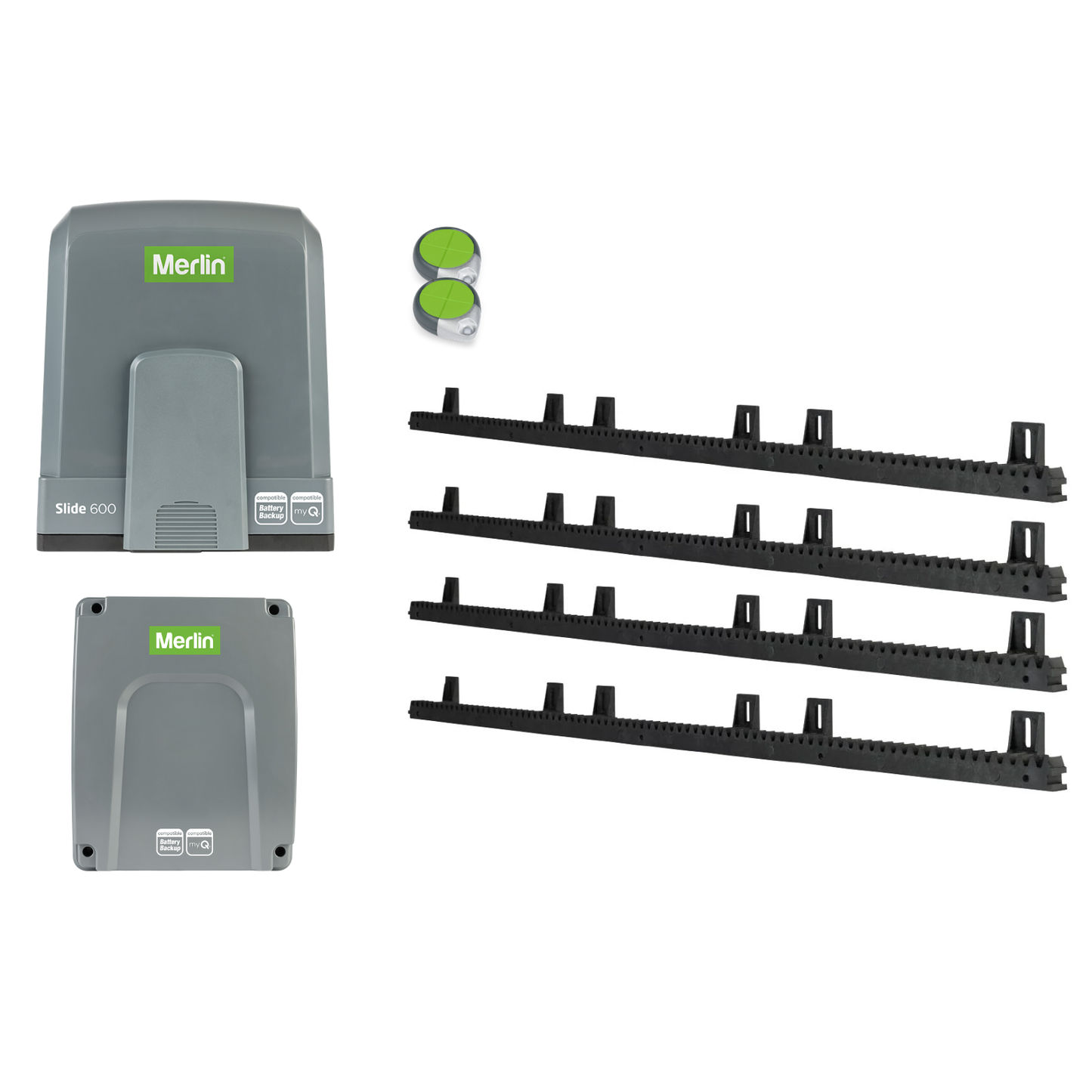

Low Voltage Configuration

1 × Merlin Slide 600 Sliding Gate Opener (MGSK600)
2 × E970M Premium Keyring Remotes
4 × 1 m MGS-RACK Sliding Gate Racking

Additional rack lengths can be purchased separately as required.

1x Low Voltage Transformer Box

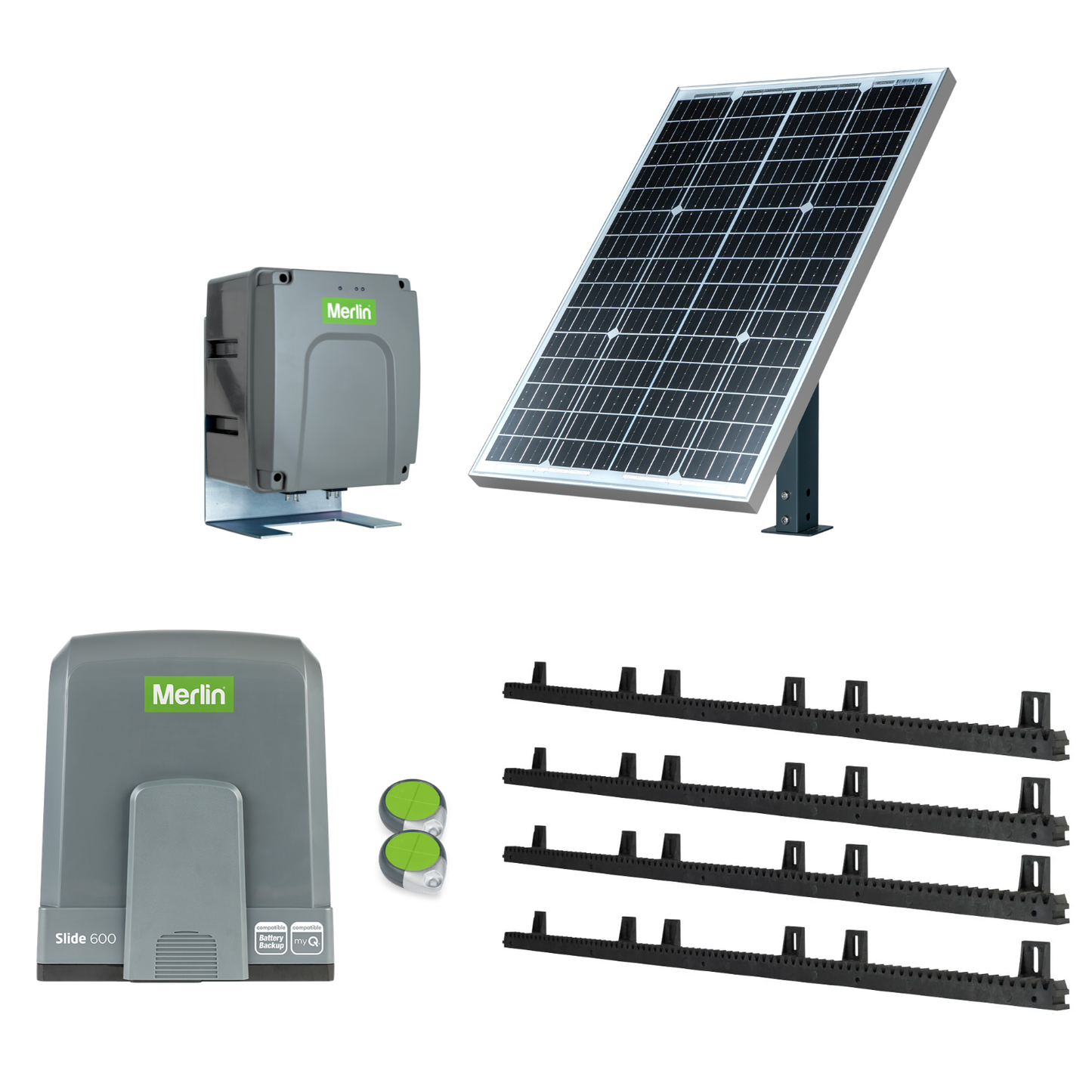

Solar Kit Configuration

1 × Merlin Slide 600 Sliding Gate Opener (MGSK600)
2 × E970M Premium Keyring Remotes
4 × 1 m MGS-RACK Sliding Gate Racking

Additional rack lengths can be purchased separately as required.

1 × 40W Solar Panel
1 × Solar Panel Mounting kit
1 × Solar Power enclosure with mounting brackets
2 × 18Ah batteries
1 × 240V mains power pack with battery charge plug & adaptor cable
1 × Solar power connection cable to gate opener

Technical Specifications

Input Power: 120 W
Opening Time: Approx. 130 mm/sec
Remote Memory Capacity: 64 devices
Ingress Protection: IP44 (outdoor rated)
Opener Dimensions: 304 mm × 270 mm × 218 mm
Warranty: 3 years

Downloads:

Other Info

Reliability

IP44 Weather Resistant, suitable for outdoor installation
Quiet DC Motor for smooth, low-noise operation
Compliant to Australian and New Zealand Standard AS/NZS 60335.2.103

Safety & Security

Built-in premium safety reversal technology for obstruction detection
Security+ 2.0® encrypted rolling code technology, generating a new code with every remote click
Automatic close function with adjustable timer
Improved remote control range for convenient access

myQ App Compatibility

iPhone / iPod Touch: iOS 13.0 or later
Apple Watch: watchOS 5.0 or later
Android: Android 7.0 (Nougat) or later

Windows and Blackberry devices are not supported.

Note: While the app may install on earlier operating systems, functionality is not guaranteed. As myQ updates are released, older operating systems may no longer be supported. Some third-party integrations may require a subscription.

Warranty Conditions

To qualify for the full manufacturer warranty, the following conditions apply:

Installation must be completed by a licensed gate or garage door installer
Proof of professional installation must be provided
The system must be serviced regularly in accordance with Merlin’s published maintenance requirements
Full warranty terms are available on the manufacturer’s website or within the product manual.

View full details

For Gates up to 600kg

Solar & Off-Grid Option Available

Battery Backup Compatible (sold separately)

Rural & Residential Rated
