Merlin | Swing LR 500 Rural Gate Opener

Ironbark Home & Outdoor

Merlin | Swing LR 500 Rural Gate Opener

Merlin | Swing LR 500 Rural Gate Opener

$1,999.00 AUD
$1,999.00 AUD
Sale Sold out
Shipping calculated at checkout.

Additional rural, regional, bulky or pallet delivery charges may apply and must be paid before dispatch.

Configuration
Complete your system Complete Your Gate System Add compatible accessories for safety, access and smart control. Complete Your Gate System

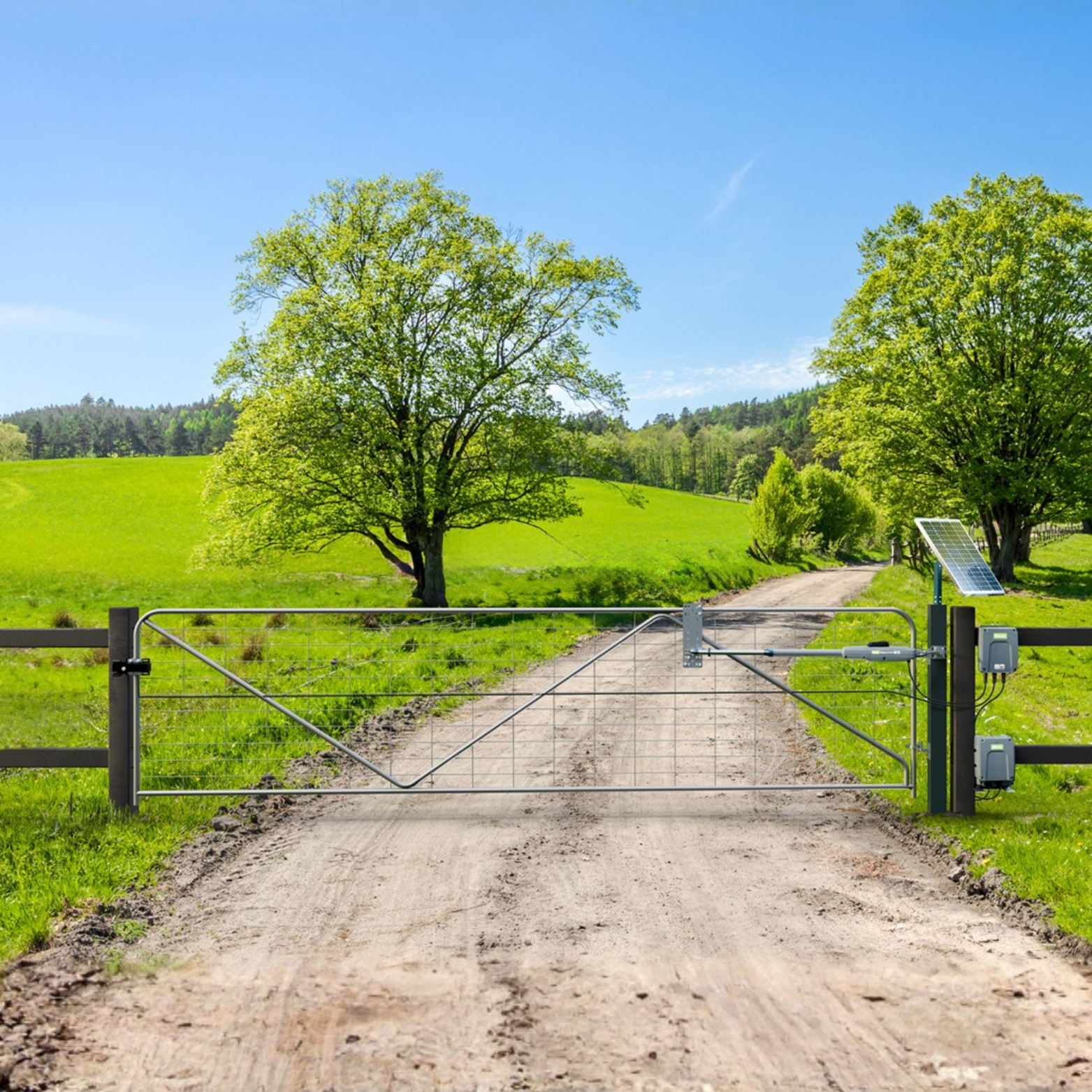

The Merlin Swing LR 500 is a heavy-duty swing gate opener designed for wide farm gates, acreage entrances, and rural properties, delivering smooth, reliable access even in demanding outdoor environments.

Rated IP44, the LR 500 is engineered for all-weather performance and quiet operation, making it ideal for remote or off-grid installations where reliability is critical.

Power Options

Available in Mains Power or Solar configurations:

  • Mains Power: Ideal for properties with existing power infrastructure at the gate location.
  • Solar Kit: Complete off-grid solution with a 40W solar panel and battery backup, suited to rural and remote properties.
  • Dual Solar: Additional solar capacity for dependable operation in areas with limited daily sun exposure.

Battery backup compatible (sold separately)

Control & Operation
  • LCD Display for simple setup and diagnostics
  • myQ smart control compatible for remote access and monitoring
    • Additional purchase of The Outdoor Protector System and myQ Gateway is required
  • Adjustable opening & closing speeds
  • Manual disengagement mechanism allows the gate to be opened and closed manually when required
What's Included

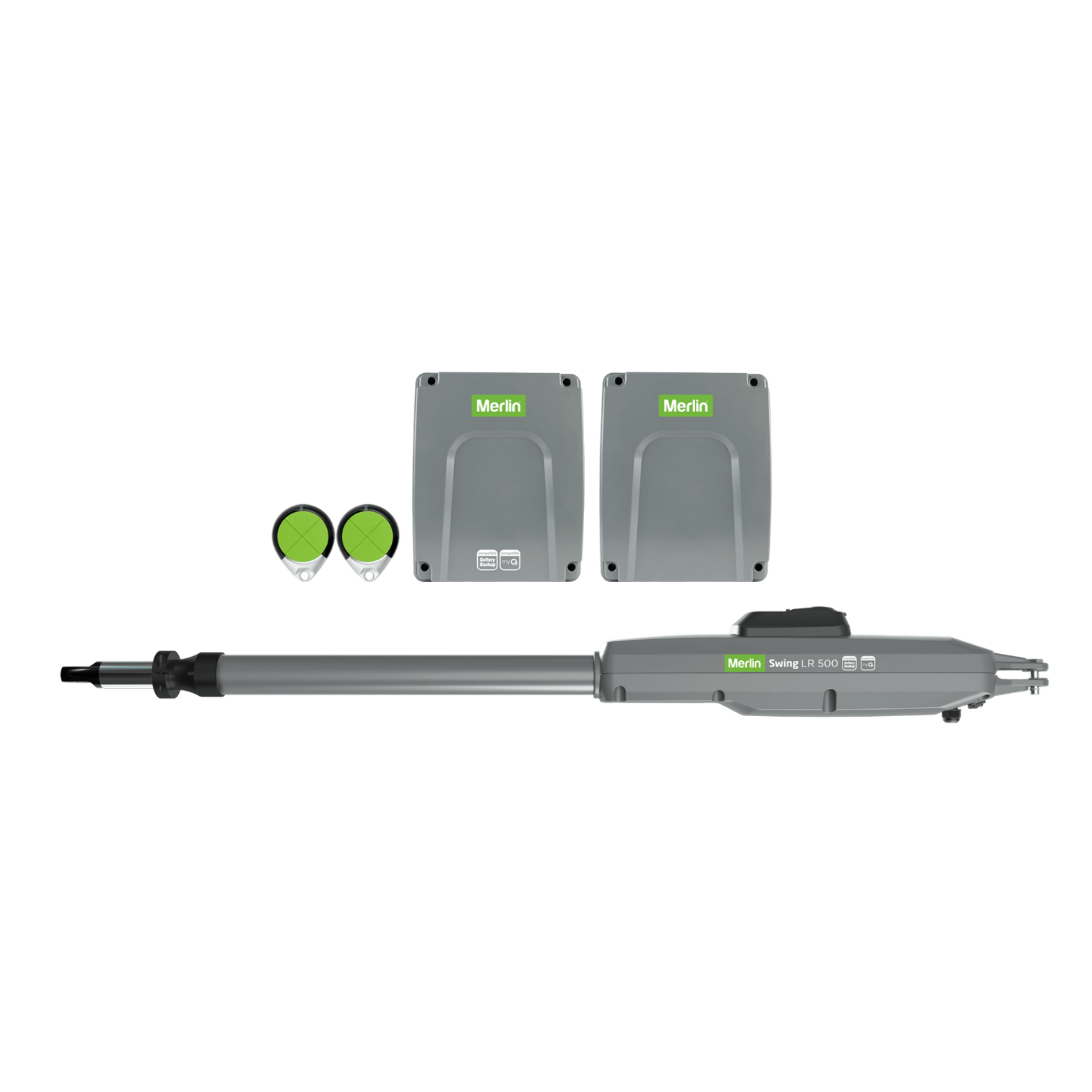

Main Power Configuration

  • 1 × Merlin Swing LR 500 Motor
  • 1 x Merlin Logic Box
  • 2 x Merlin Remote Controls (E975M)
  • 1 x Merlin Mains Power Kit

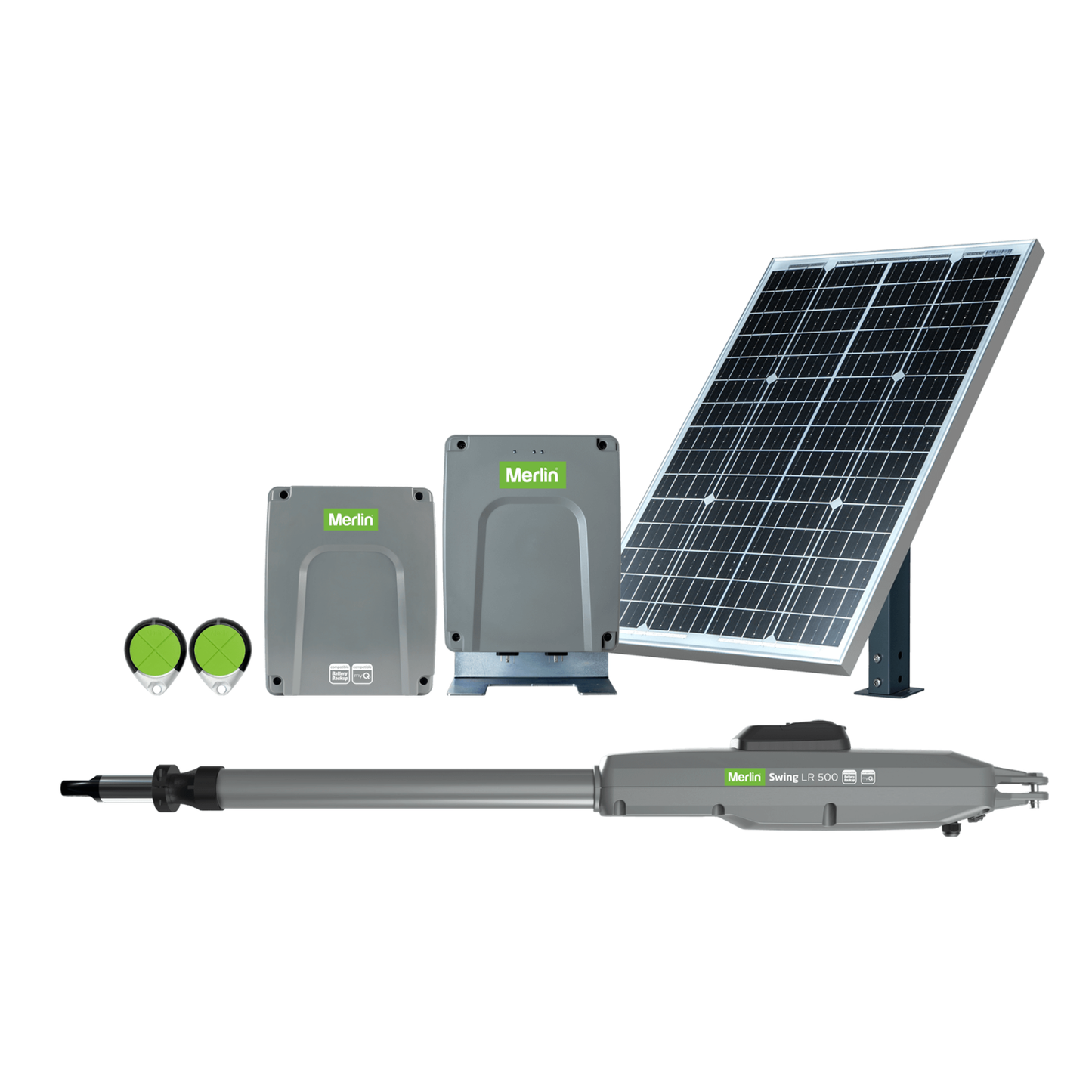

Solar Kit Configuration

  • 1 × Merlin Swing LR 500 Motor
  • 1 x Merlin Logic Box
  • 2 x Merlin Remote Controls (E975M)
  • 1 × 40W Solar Panel
  • 1 × Solar Panel Mounting kit
  • 1 × Solar Power enclosure with mounting brackets
  • 2 × 18Ah batteries
  • 1 × 240V mains power pack with battery charge plug & adaptor cable
  • 1 × Solar power connection cable to gate opener

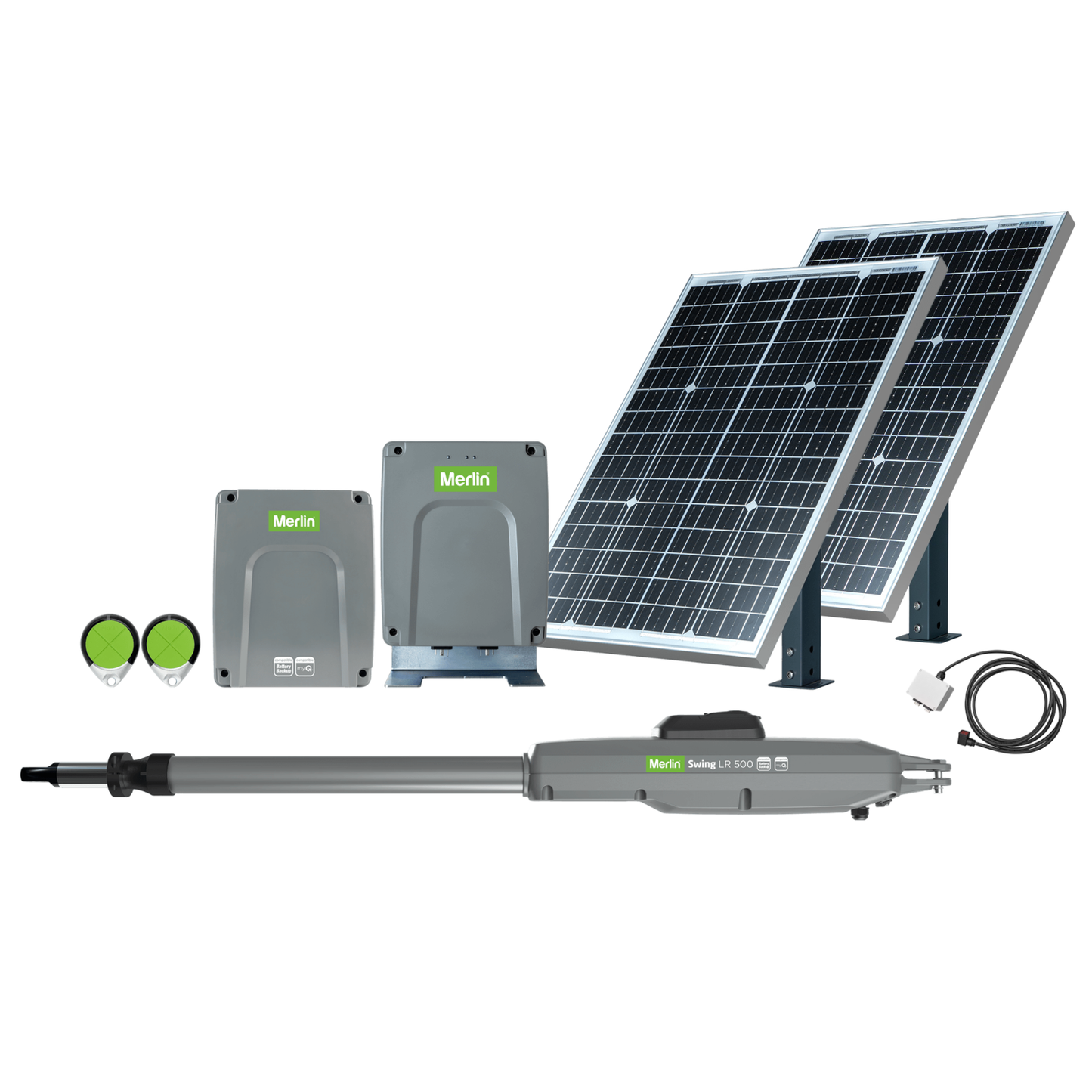

Dual Solar Kit Configuration

  • 1 × Merlin Swing LR 500 Motor
  • 1 x Merlin Logic Box
  • 2 x Merlin Remote Controls (E975M)
  • 2 × 40W Solar Panel
  • 2 × Solar Panel Mounting kit
  • 1 × Solar Power enclosure with mounting brackets
  • 2 × 18Ah batteries
  • 1 × 240V mains power pack with battery charge plug & adaptor cable
  • 1 × Solar power connection cable to gate opener
  • 1 × Dual Solar Panel Cable Connector
Technical Specifications
  • Motor Voltage: 24 VDC
  • Input Power: 50 W
  • Opening Angle: Up to approximately 120°
  • Opening Time: Approx. 20–27 seconds
  • Maximum Pull Force: 1,500 N
  • Remote Memory Capacity: 64 devices
  • Operating Temperature: -20°C to +55°C
  • Ingress Protection: IP44 (outdoor rated)
  • Radio Frequency: 433.30 / 433.92 / 434.54 MHz (Security+ 2.0®)
  • Warranty: 3 years

Downloads:

Other Info

Reliability

  • IP44 Weather Resistant, suitable for outdoor installation
  • Quiet DC Motor for smooth, low-noise operation
  • Compliant to Australian and New Zealand Standard AS/NZS 60335.2.103

Safety & Security

  • Built-in premium safety reversal technology for obstruction detection
  • Security+ 2.0® encrypted rolling code technology, generating a new code with every remote click
  • Automatic close function with adjustable timer

myQ App Compatibility

  • iPhone / iPod Touch: iOS 13.0 or later
  • Apple Watch: watchOS 5.0 or later
  • Android: Android 7.0 (Nougat) or later

Windows and Blackberry devices are not supported.

Note: While the app may install on earlier operating systems, functionality is not guaranteed. As myQ updates are released, older operating systems may no longer be supported. Some third-party integrations may require a subscription.

Warranty Conditions

To qualify for the full manufacturer warranty, the following conditions apply:

  • Installation must be completed by a licensed gate or garage door installer
  • Proof of professional installation must be provided
  • The system must be serviced regularly in accordance with Merlin’s published maintenance requirements
  • Full warranty terms are available on the manufacturer’s website or within the product manual.
View full details
Capacity For Gates up to 300kg
Solar Solar & Off-Grid Option Available
Battery backup Battery Backup Compatible (sold separately)
Rated Rural & Residential Rated
.
