Merlin | Electronic Lock

Merlin | Electronic Lock

$379.00 AUD
$379.00 AUD
Sale Sold out
Shipping calculated at checkout.

Additional rural, regional, bulky or pallet delivery charges may apply and must be paid before dispatch.

Installation Type

The Merlin Electronic Lock (E-Lock) provides additional security and gate stability for compatible automatic gate systems.

Using a mechanical locking system to securely hold the gate in the closed position, the E-Lock helps reduce unwanted gate movement in windy conditions while also improving overall property security.

The lock is released automatically using a 24V pulse-to-open signal during normal gate operation. In the event of a power outage, the system can also be manually released using the supplied key for reliable emergency access.

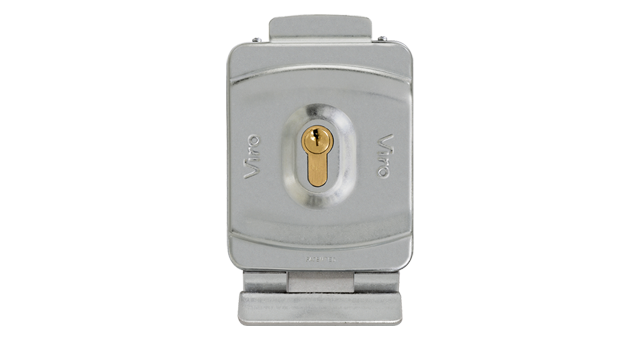

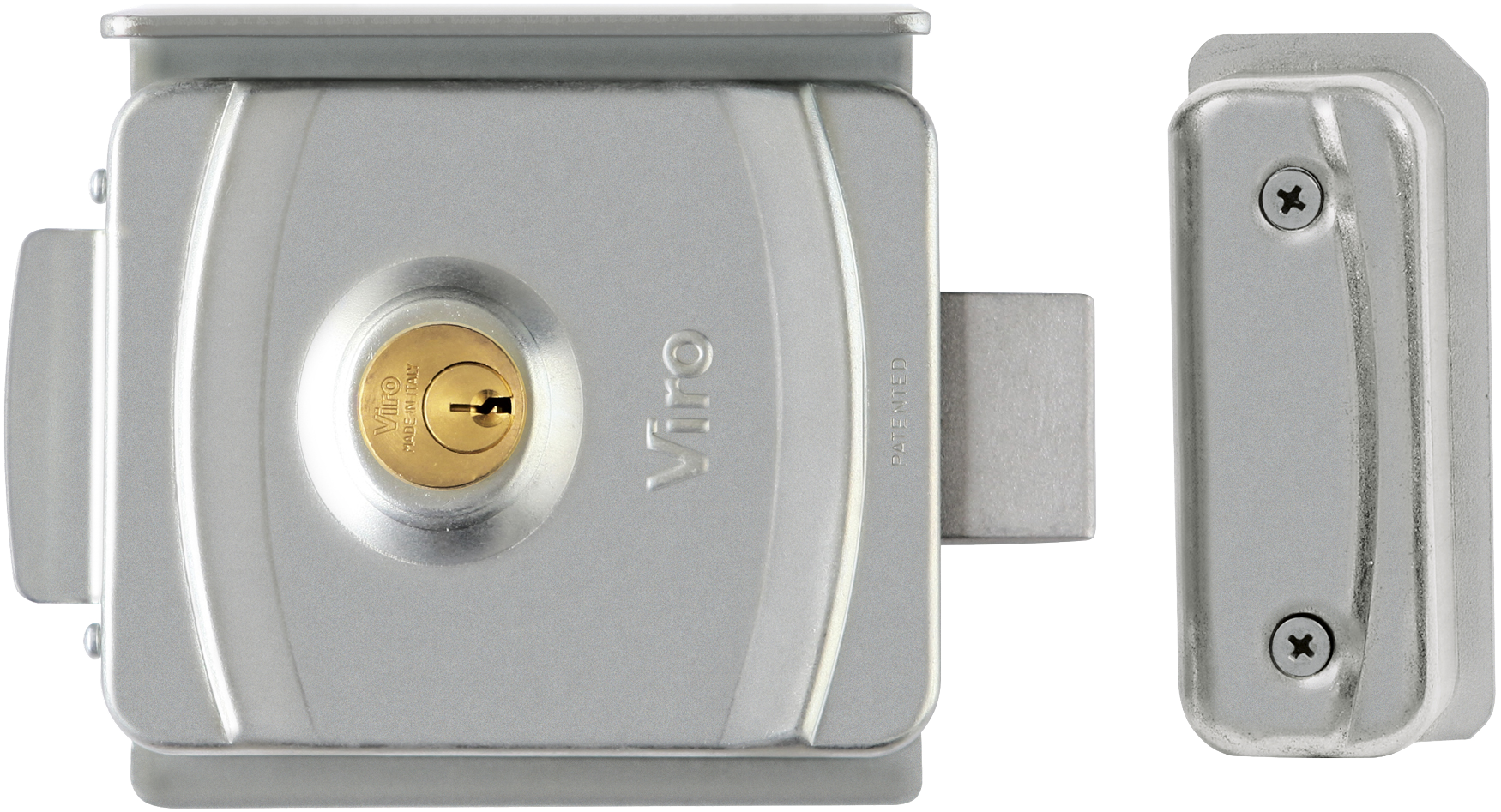

Available in both vertical and horizontal mounting configurations, the E-Lock is suitable for a range of automatic gate installations.



Features:

  • Mechanical gate locking system
  • Provides additional gate security and stability
  • Helps reduce gate movement in windy conditions
  • Automatic 24V pulse release operation
  • Manual key override during power outages
  • Available in vertical or horizontal mounting options
  • Durable outdoor installation design



Available Variants:

  • Vertical Mount Electronic Lock
  • Horizontal Mount Electronic Lock



Inclusions:

  • Merlin E-Lock
  • Strike Plate
  • Pre-fitted Key Barrel and Keys
  • Weather Shield Plate
  • Installation Instructions
Compatible Products
  • Merlin Slide 600 Gate Opener MGSK600
  • Merlin Swing A200 Articulated Single Gate Opener MGASK
  • Merlin Swing A200 Articulated Double Gate Opener MGADK
  • Merlin Swing L300 Actuator Single Gate Opener MGLSK
  • Merlin Swing L300 Actuator Double Gate Opener MGLDK
View full details
.
Product Safety & Compliance Notice

Please read the safety and compliance information below before purchase and installation.

Battery Safety Warning Important

This product may contain a button or coin cell battery.

WARNING: Button and coin cell batteries can cause serious injury or death if swallowed or inserted into the body.

  • Keep new and used batteries out of reach of children at all times.
  • Do not use the product if the battery compartment is damaged or does not close securely.
  • Dispose of used batteries immediately and safely — even flat batteries can cause harm.
  • Do not ingest the battery — chemical burn hazard.
  • If you suspect a battery has been swallowed or inserted, seek urgent medical attention immediately — severe or fatal injuries can occur within 2 hours.

Emergency Contacts

  • Australia: Poisons Information Centre — 13 11 26
Compliance & Installation Responsibility

All products supplied are manufactured and certified by the original manufacturer to meet relevant Australian Standards, based on manufacturer documentation available at the time of supply.

We provide product information and general guidance based on manufacturer specifications only. We do not provide engineering advice, site assessments, installation services, wiring guidance, or regulatory compliance certification.

Installation, electrical work, site suitability assessment, and ongoing compliance with applicable standards and regulations remain the responsibility of the installer or purchaser.

Product Selection & Use

Product suitability depends on correct selection, installation, and use in accordance with the manufacturer’s instructions and applicable standards.

It is the responsibility of the purchaser or installer to:

  • Verify the product is suitable for the specific gate, site conditions, and power supply.
  • Confirm compliance with all relevant local, state, and national regulations.
  • Ensure installation is performed by a suitably qualified person where required.

We do not accept responsibility for product performance or suitability where products are installed or used outside of manufacturer specifications.
