The DACE Ultima HT18/36 Gate Operator Kit is a high-traffic sliding gate automation system designed for residential and light commercial applications where frequent gate operation is required. The HT18/36 incorporates a reinforced steel drive cog and high-efficiency motor system to support demanding residential and light commercial environments.
This makes the operator suitable for locations such as:
Multi-residential driveways
Small commercial properties
Shared rural entrances
High-use residential gates
The HT18/36 takes its name from its operating speed, capable of running at 18 metres per minute at 12V or 36 metres per minute at 24V, providing faster opening and closing cycles compared with standard residential gate motors.
The low-voltage DC motor is suitable for sliding gates up to 11 metres in length and 600 kg in weight, making it well suited to residential driveway gates, rural entrances, multi-dwelling properties, and light commercial premises.
The Ultima control system features an advanced logic board with a graphical display and voice-guided setup, allowing installers to configure, monitor, and troubleshoot the system efficiently.
Rack Requirements
Please note: 4 metres of gear rack is included with this kit.
To determine how much rack you need:
Measure the gate opening width.
Add an additional 500 mm to allow the motor to fully open the gate.
If the total required rack length is greater than 4 metres, additional rack sections will be required.
Available in Mains Power or with a Solar Power Kit.
The Ultima HT18/36 Mains Power Kit can be powered from a 240V mains supply, using the included transformer.
The transformer allows the control unit to be installed up to 50 metres from the power source.

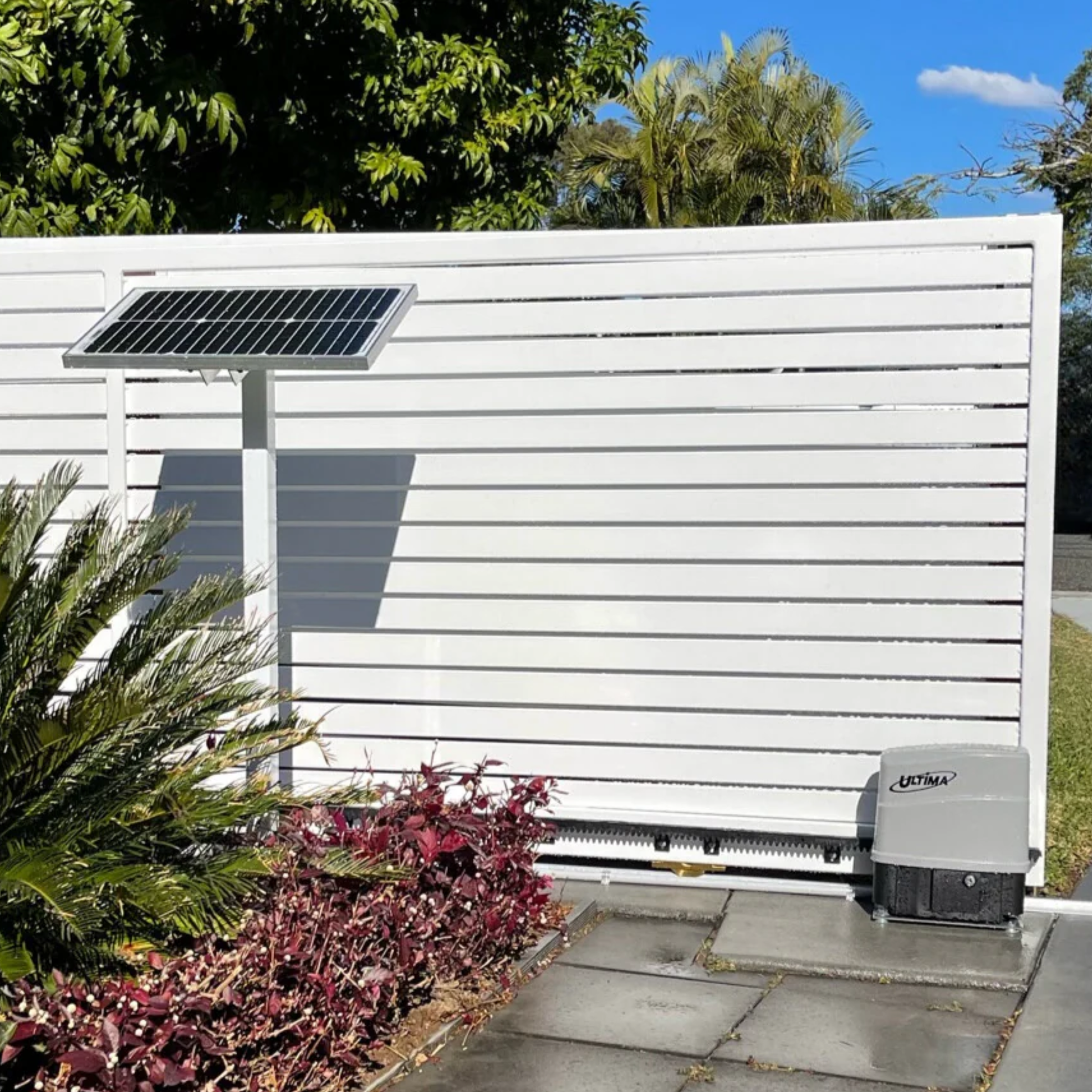

A solar upgrade kit is available for installations where mains power is not available within 50m of the gate location.
Control & Operation
The Ultima control system provides an advanced interface designed to simplify installation, operation, and diagnostics.
The graphical control board includes over 300 configurable menu items, allowing the installer to tailor gate behaviour to the specific installation.
An integrated voice-guided setup system assists during installation and troubleshooting, while the joystick navigation allows quick access to control menus and system settings.
The controller also supports automatic battery charging management, multiple security configurations, and programmable event scheduling.

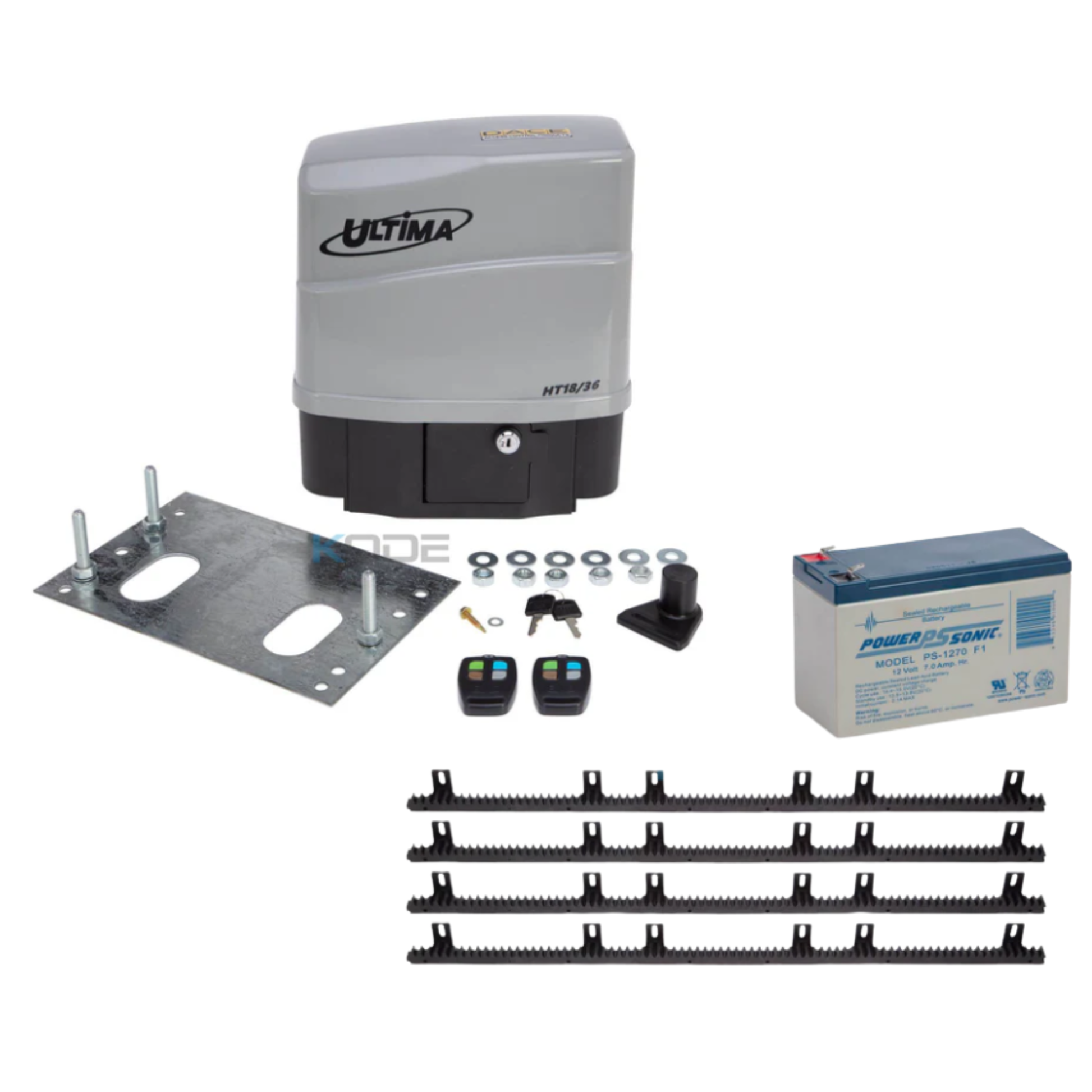

What's Included
Main Power Configuration
1 x RT 25/50 Motor
2 x 4 button DACE Exo Remotes (Pre-programmed)
1 x Battery 12V 7Ah
4 x 1m gear rack
1 x Owner's Manual
1 x 240 volt - 16 volt low voltage transformer

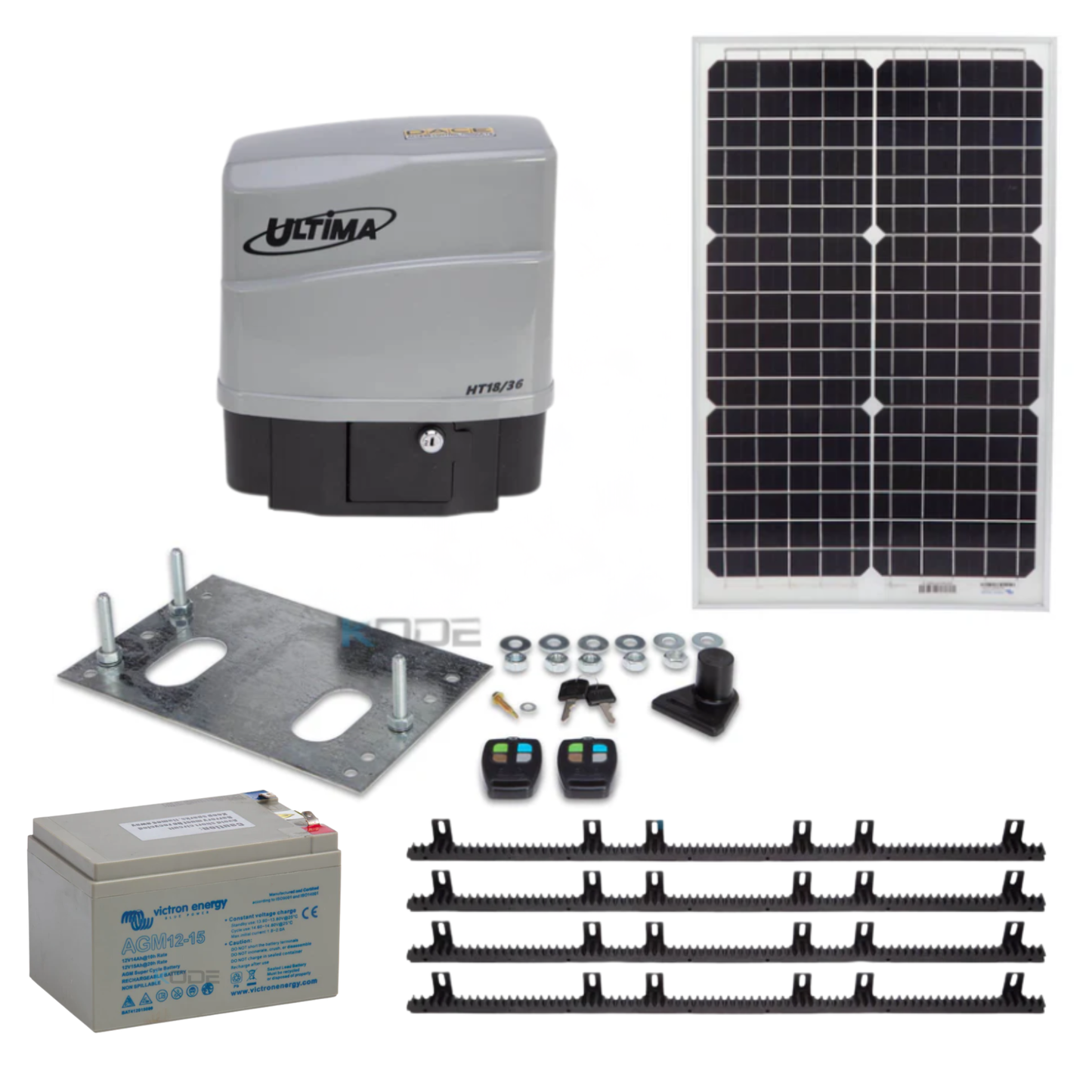

Solar Kit Configuration
1 x RT 25/50 Motor
2 x 4 button DACE Exo Grey Remotes (Pre- programmed)
Before installation begins, the gate must be in good working order. Please ensure the gate is correctly aligned, moves freely along the track, and complies with the motor capacity specifications.
Note: Automatic gate operators should only be installed by a qualified automatic gate installer or licensed electrician.
Other Info
Key Features:
Large graphics display
On-board help screens
8 inputs and 5 outputs
6 different sleep modes
Navigate menu via joystick
Multiple security functions
Quick nav screen for easy selection
Program up to 16,000 remote buttons
Automatic 12/24V charging selection
Time manager capable of controlling up to 840 scheduled events
15 channel on-board code hoping receiver
On site software upgradeable via USB or Android
Ultra energy efficient, consumes 0.1W in sleep mode
Download up to 1024 logged events to USB or Android
Voice prompts to simplify installation and fault finding
Please read the safety and compliance information below before purchase and installation.
Battery Safety Warning Important
This product may contain a button or coin cell battery.
WARNING: Button and coin cell batteries can cause serious injury or death if swallowed or inserted into the body.
Keep new and used batteries out of reach of children at all times.
Do not use the product if the battery compartment is damaged or does not close securely.
Dispose of used batteries immediately and safely — even flat batteries can cause harm.
Do not ingest the battery — chemical burn hazard.
If you suspect a battery has been swallowed or inserted, seek urgent medical attention immediately — severe or fatal injuries can occur within 2 hours.
Emergency Contacts
Australia: Poisons Information Centre — 13 11 26
Compliance & Installation Responsibility
All products supplied are manufactured and certified by the original manufacturer to meet relevant Australian Standards,
based on manufacturer documentation available at the time of supply.
We provide product information and general guidance based on manufacturer specifications only.
We do not provide engineering advice, site assessments, installation services, wiring guidance, or regulatory compliance certification.
Installation, electrical work, site suitability assessment, and ongoing compliance with applicable standards and regulations remain the responsibility of the installer or purchaser.
Product Selection & Use
Product suitability depends on correct selection, installation, and use in accordance with the manufacturer’s instructions and applicable standards.
It is the responsibility of the purchaser or installer to:
Verify the product is suitable for the specific gate, site conditions, and power supply.
Confirm compliance with all relevant local, state, and national regulations.
Ensure installation is performed by a suitably qualified person where required.
We do not accept responsibility for product performance or suitability where products are installed or used outside of manufacturer specifications.
