DACE | Duraswing MkII Swing Gate Opener - Double Kit

Ironbark Home & Outdoor

DACE | Duraswing MkII Swing Gate Opener - Double Kit

DACE | Duraswing MkII Swing Gate Opener - Double Kit

$1,188.79 AUD
$1,188.79 AUD
Sale Sold out
Shipping calculated at checkout.

Additional rural, regional, bulky or pallet delivery charges may apply and must be paid before dispatch.

Configuration
Mounting Configuration
Complete your system Complete Your Gate System Add compatible accessories for safety, access and smart control. Complete Your Gate System

Engineered for Australian conditions, the DACE Duraswing Gate Operator is designed for domestic swing gate automation.

This listing is for the Double Motor Kit, suitable for double swing gate installations.

The system supports gate leaves up to 4 metres in length and 250 kg in weight per leaf, making it suitable for most residential driveway gates and rural property entrances.

DACE Swing gate motors require different mounting hardware depending on how your gate is installed and which direction it opens. Choosing the correct configuration ensures the motor operates smoothly and achieves the correct opening angle.

1. What Mounting Configuration do I need?

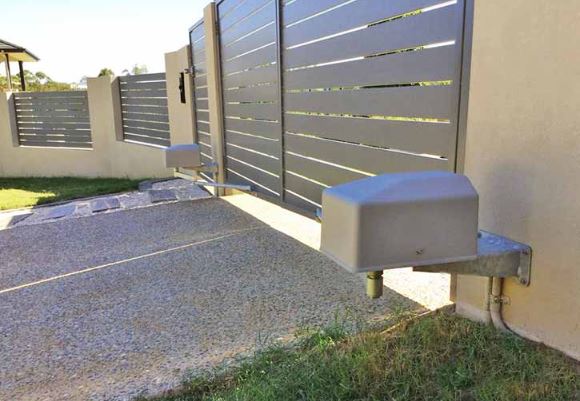

Wall Mount: Gate hinge is mounted to a wall or structural pillar (brick or concrete)

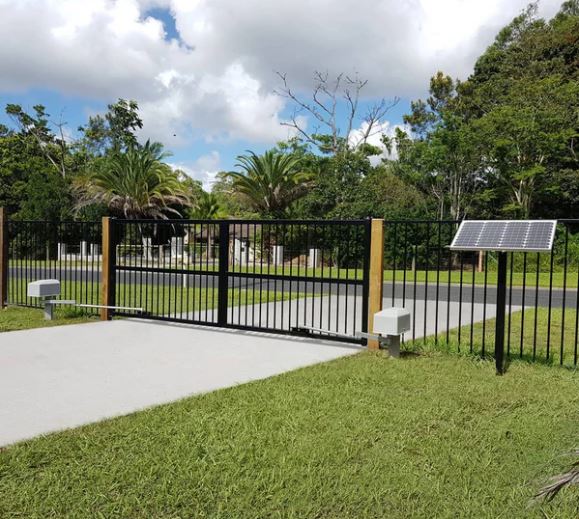

Pedestal Mount: Gate is mounted on a free-standing steel or timber post



2. Does the gate open inward or outward?

Determine which direction the gate swings when opening.

  • Inward Swing – The gate opens towards the property.
  • Outward Swing – The gate opens towards the street or driveway entrance.

If the gate can swing in both directions, choose the direction you want the automated gate to open.



Example
A wooden gate hinged on a brick wall that opens towards the property would require:
Wall Mount + Inward Swing Motor Kit



If you are unsure which configuration you require, contact us for assistance.

Power Options

Available in Mains Power or with a Solar Power Kit.

Mains Power Kit:

  • The Duraswing system can be powered from a 240V mains supply, using the included transformer.
  • The transformer allows the control unit to be installed up to 80 metres from the power source.
  • Kit includes battery backup, contained within motor, in case of power outage.

Solar Power Kit:

  • A solar upgrade kit is available for installations where mains power is not available within 80m of the gate location.
  • Solar operation requires a 12V battery system and appropriate solar charging components.

Additional battery backup compatible (sold separately)

  • For Mains Kit: A 12V 7Ah battery can be installed to provide additional backup power during a mains outage.
Control & Operation
  • One touch programming
  • In-built mechanical stops
  • DACE 4-button remote transmitters
  • Safety beam integration ability (recommended add-on), allowing the gate to automatically stop or reverse if an obstruction is detected.
  • Battery backup in case of power outage

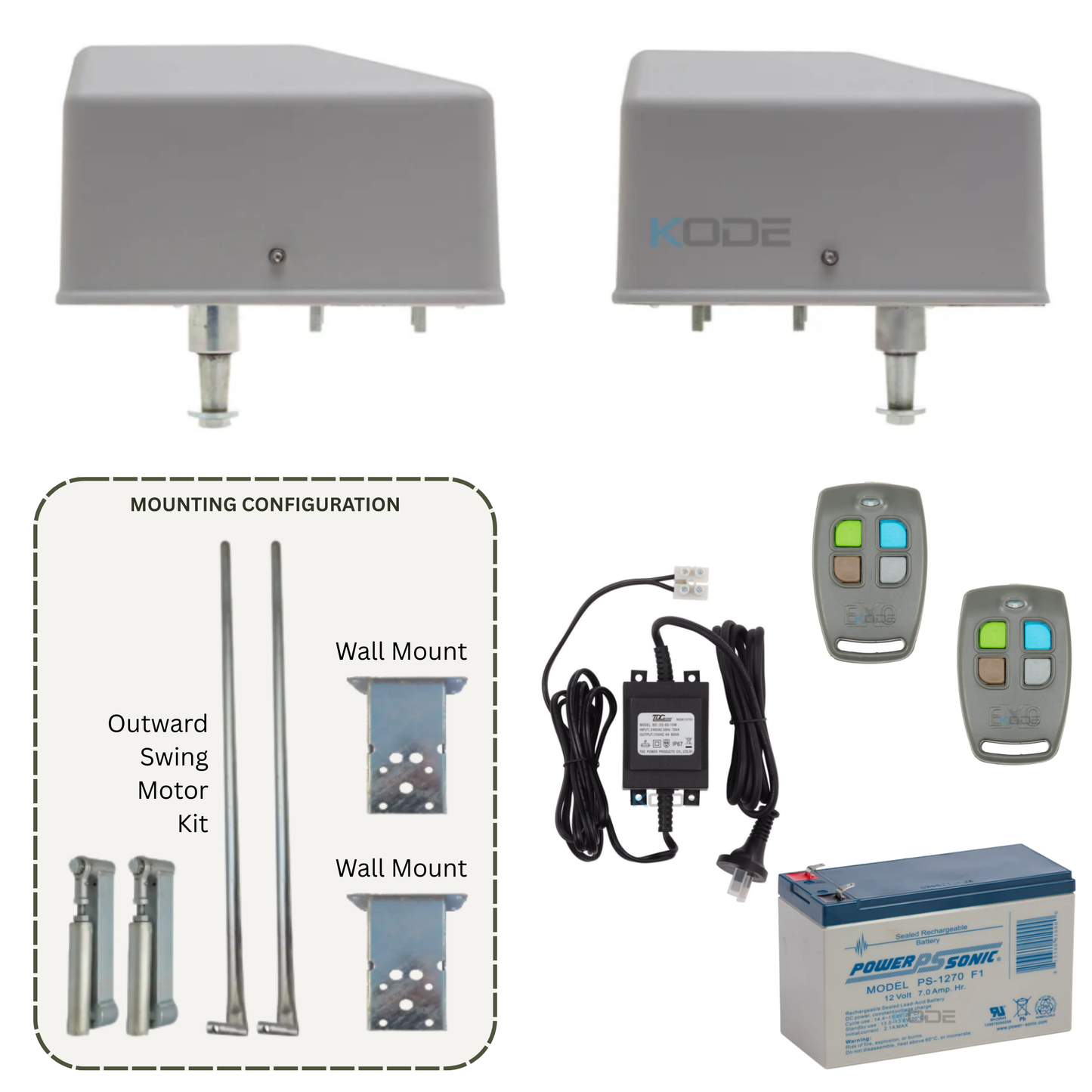

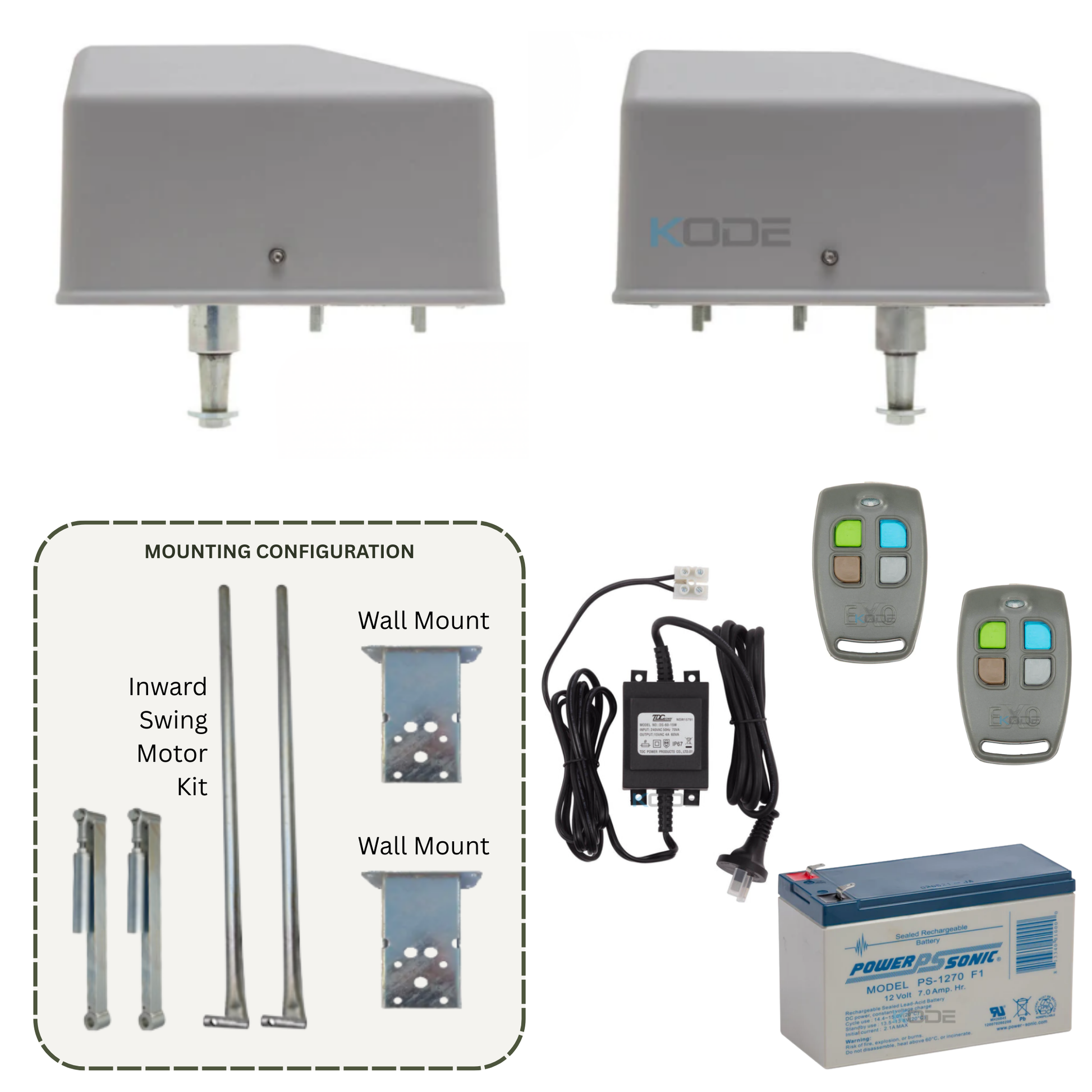

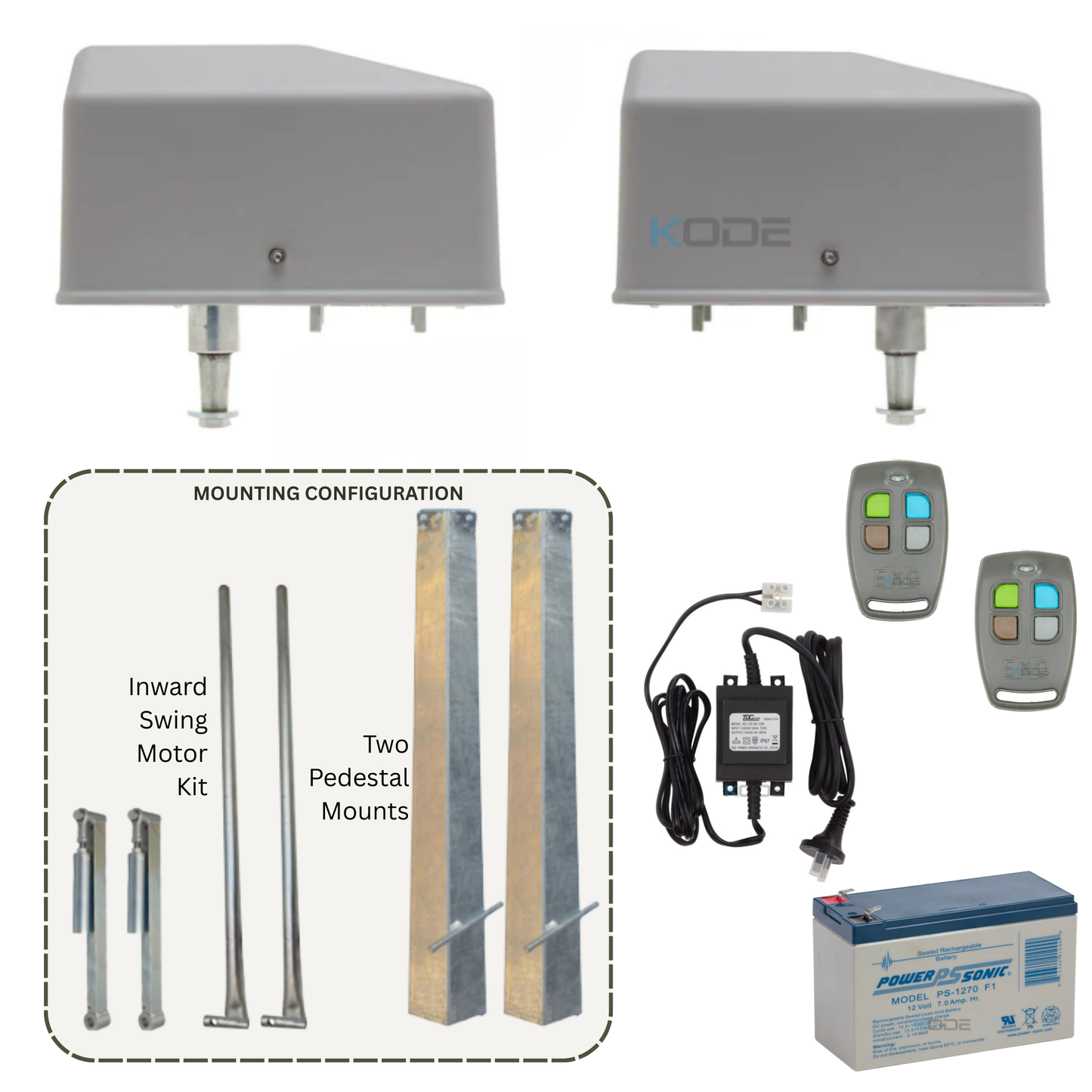

What's Included

Main Power Configuration

  • 1 × DACE Duraswing Master Gate Motor
  • 1 × DACE Duraswing Slave Gate Motor
  • 1 × Transformer
  • 2 × DACE 4-Button Remote Controls
  • 1 × Mounting configuration kit

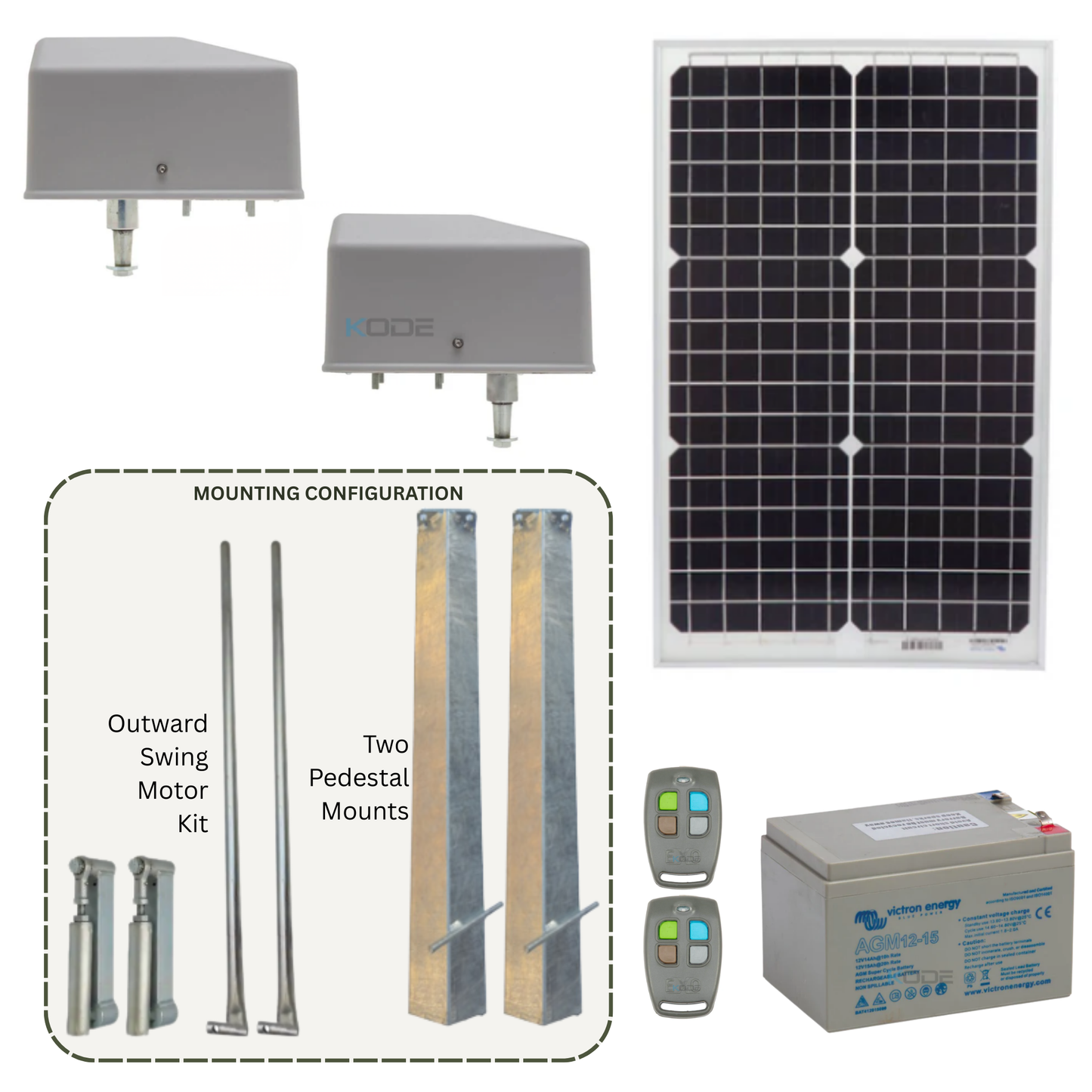

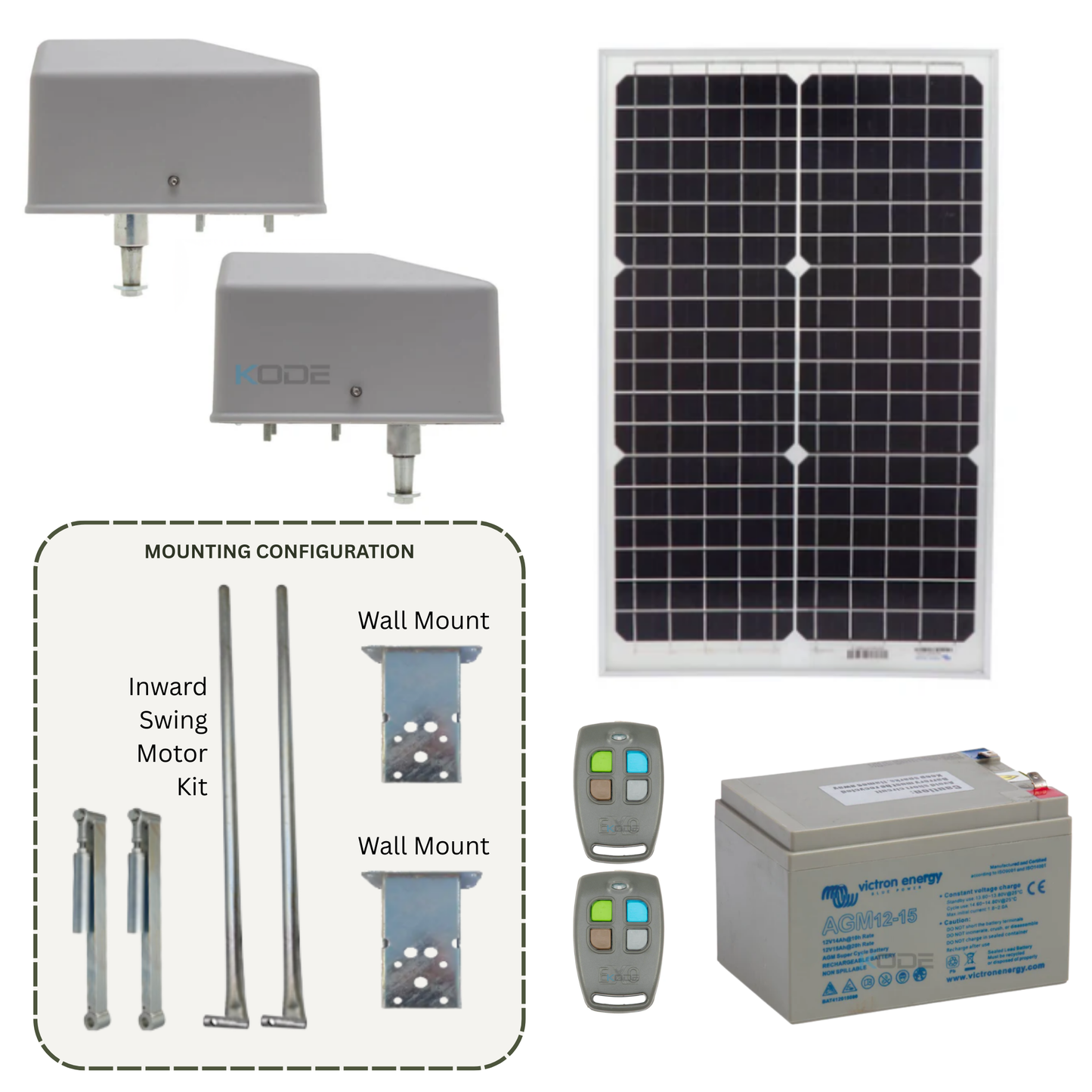

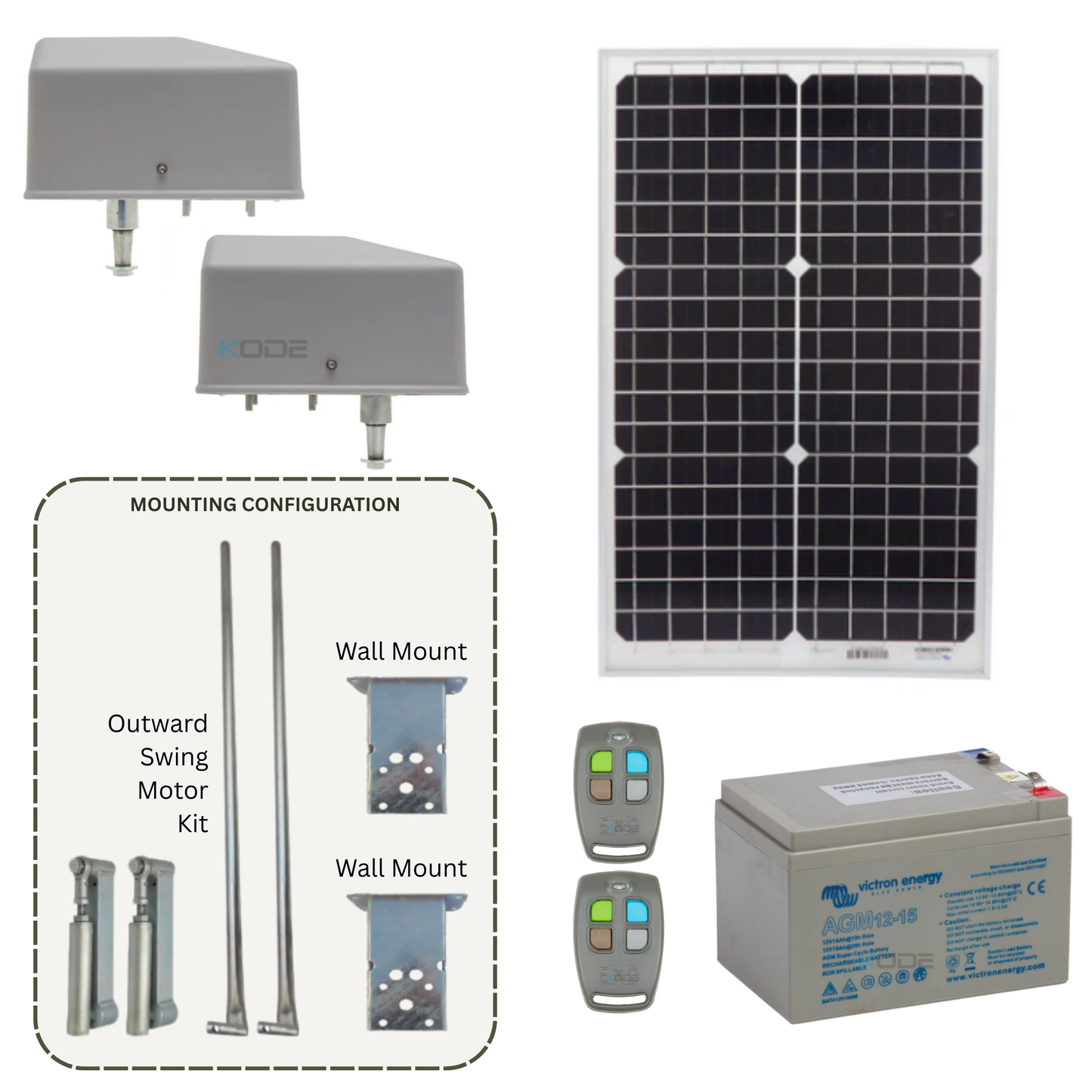

Solar Kit Configuration

  • 1 × DACE Duraswing Master Gate Motor
  • 1 × DACE Duraswing Slave Gate Motor
  • 2 × DACE 4-Button Remote Controls
  • 1 × Mounting configuration kit
  • 1 × 12ah 12 Volt Battery
  • 1 × Solar Panel Mounting kit
  • 1 × 40 Watt Solar Panel
Technical Specifications
  • Gate Type: Swing Gate Automation
  • Application: Residential & Lifestyle
  • Opening Time: Approximately 12 – 14 seconds (depending on opening angle)
  • Maximum Opening Angle: 110° (90° recommended)
  • Power Supply: 240V AC via transformer or optional solar system
  • Warranty: 3 years
Conditions of Installation

Before installation begins the gate must be in good working order. Check the following points and rectify if not in order before installation:

  • The gates must swing easily ie the gate must swing through the full arc using the force of two fingers only.
  • The gate posts must be solid and the hinges must be in good working order.
  • Ensure you are purchasing the correct configuration for your needs. Please contact us for any help.
  • Note: Fully cladded wooden or fiberglass gates can be problematic in windy conditions.
View full details
Capacity For Gates up to 250kg
Solar Solar & Off-Grid Option Available
Battery backup Battery Backup
Rated Rural & Residential Rated
.
Product Safety & Compliance Notice

Please read the safety and compliance information below before purchase and installation.

Battery Safety Warning Important

This product may contain a button or coin cell battery.

WARNING: Button and coin cell batteries can cause serious injury or death if swallowed or inserted into the body.

  • Keep new and used batteries out of reach of children at all times.
  • Do not use the product if the battery compartment is damaged or does not close securely.
  • Dispose of used batteries immediately and safely — even flat batteries can cause harm.
  • Do not ingest the battery — chemical burn hazard.
  • If you suspect a battery has been swallowed or inserted, seek urgent medical attention immediately — severe or fatal injuries can occur within 2 hours.

Emergency Contacts

  • Australia: Poisons Information Centre — 13 11 26
Compliance & Installation Responsibility

All products supplied are manufactured and certified by the original manufacturer to meet relevant Australian Standards, based on manufacturer documentation available at the time of supply.

We provide product information and general guidance based on manufacturer specifications only. We do not provide engineering advice, site assessments, installation services, wiring guidance, or regulatory compliance certification.

Installation, electrical work, site suitability assessment, and ongoing compliance with applicable standards and regulations remain the responsibility of the installer or purchaser.

Product Selection & Use

Product suitability depends on correct selection, installation, and use in accordance with the manufacturer’s instructions and applicable standards.

It is the responsibility of the purchaser or installer to:

  • Verify the product is suitable for the specific gate, site conditions, and power supply.
  • Confirm compliance with all relevant local, state, and national regulations.
  • Ensure installation is performed by a suitably qualified person where required.

We do not accept responsibility for product performance or suitability where products are installed or used outside of manufacturer specifications.
